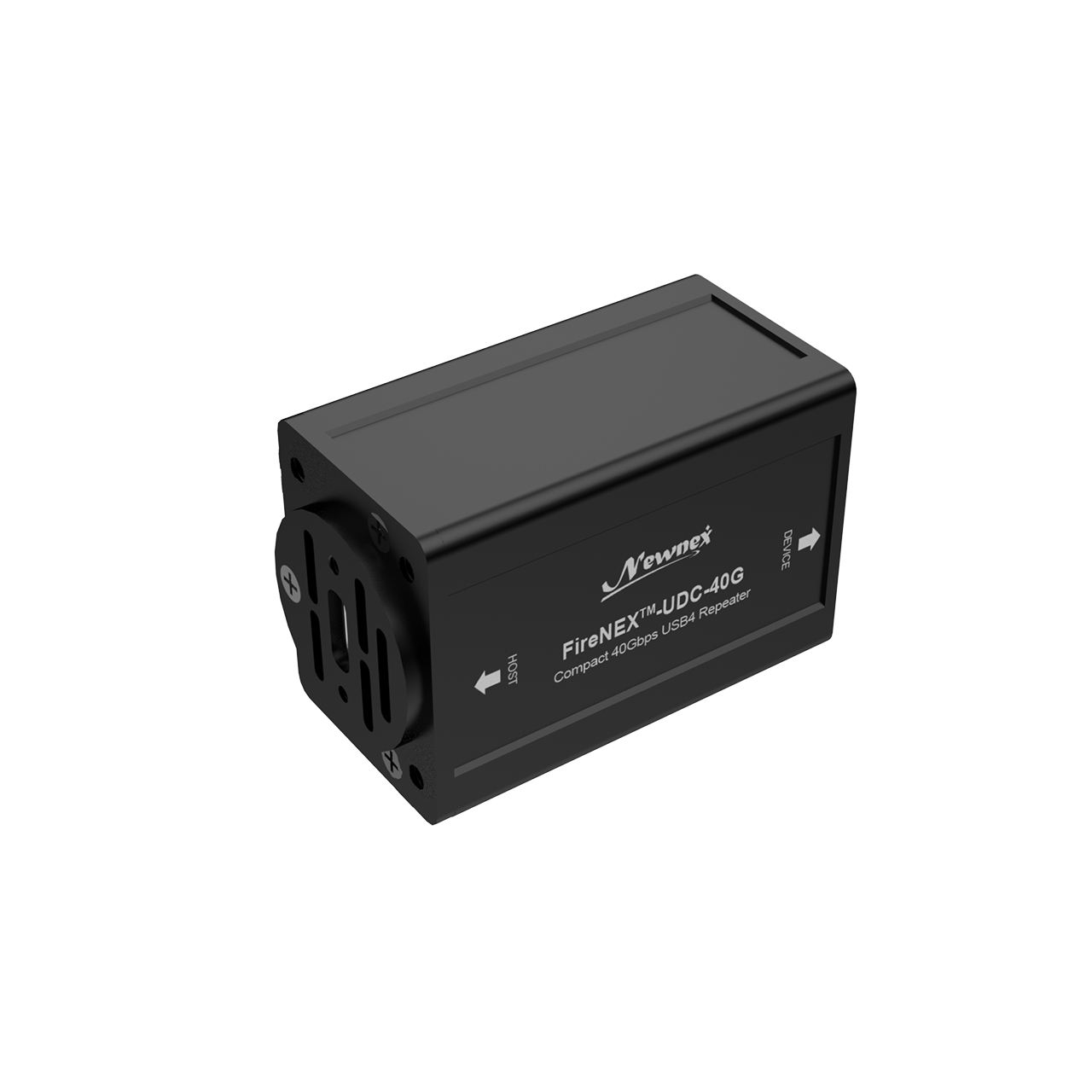

Compact 40Gbps USB4 Repeater
FireNEX™-UDC-40G | Dual USB-C | 16K Display and 60W PD
The FireNEX™-UDC-40G is a compact, high-performance 2-port USB4 repeater that actively adapts and expands one upstream 40Gbps USB-C port into two downstream 40Gbps USB-C ports, delivering full-feature USB-C with support for USB4, DisplayPort 2.1, and Thunderbolt 4. It is backward compatible with USB 3.2 Gen 2/Gen 1, USB 2.0/1.1, DP 1.4/1.2, and Thunderbolt 3 with automatic 2-lane/4-lane switching for DisplayPort Alt Mode and up to 60W power delivery for charging.
Unlike previous USB generations, USB4’s higher data rates demand strict signal integrity, making passive adapters and couplers no longer reliable in many installs due to insertion loss. The FireNEX™-UDC-40G is designed with superior signal integrity and functions as an active re-timer/repeater or a hub switch, ensuring stable transmission of data, video, and power when joining two USB-C cables.

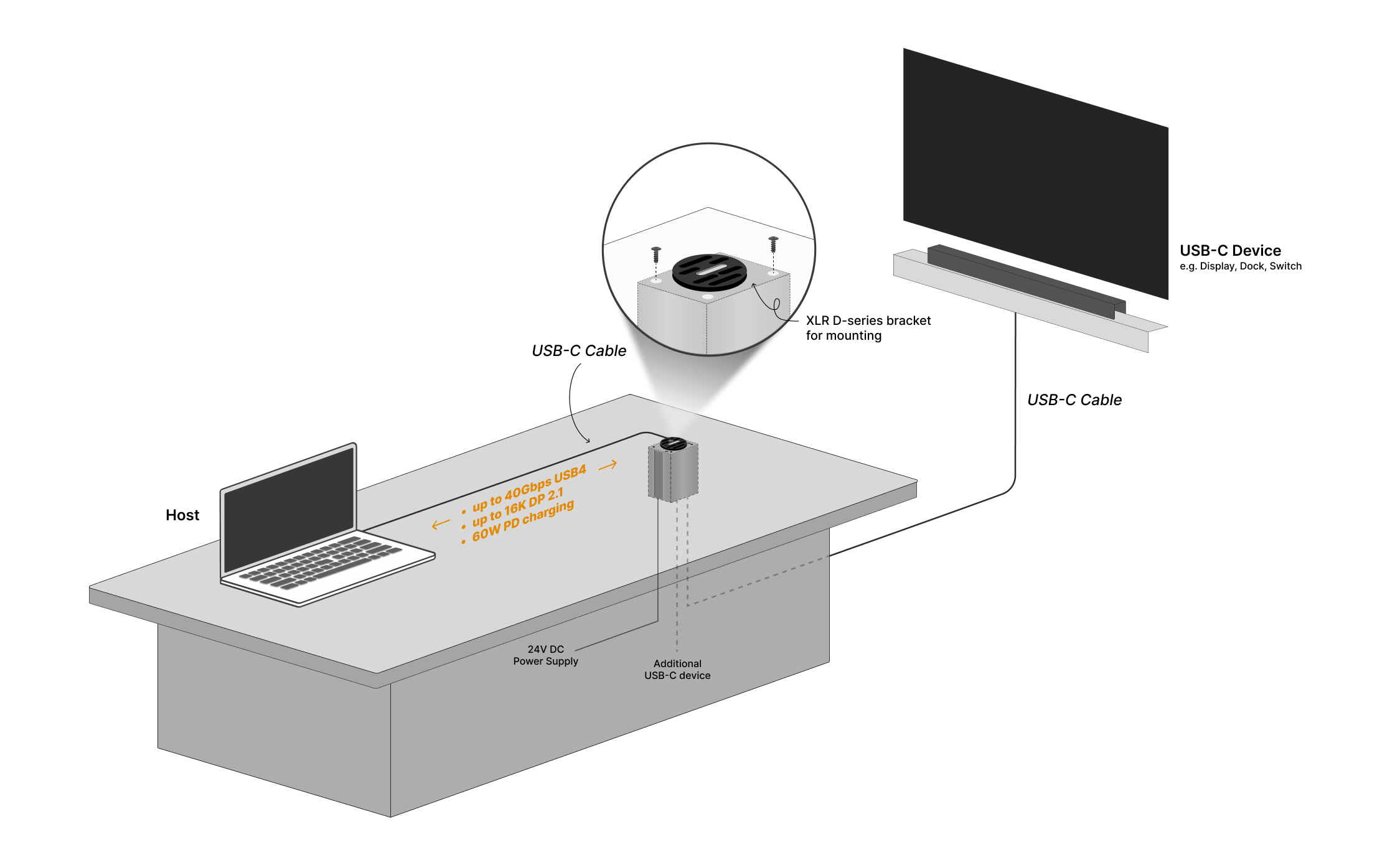

Designed for Pro AV, IT, and meeting room installations, the FireNEX™-UDC-40G includes an XLR D-series mounting bracket for seamless integration into enclosures or racks. With broad compatibility across USB4, Thunderbolt, USB 3.2, and DP Alt Mode devices, it eliminates setup uncertainty and provides plug-and-play confidence in professional environments.
Key Features

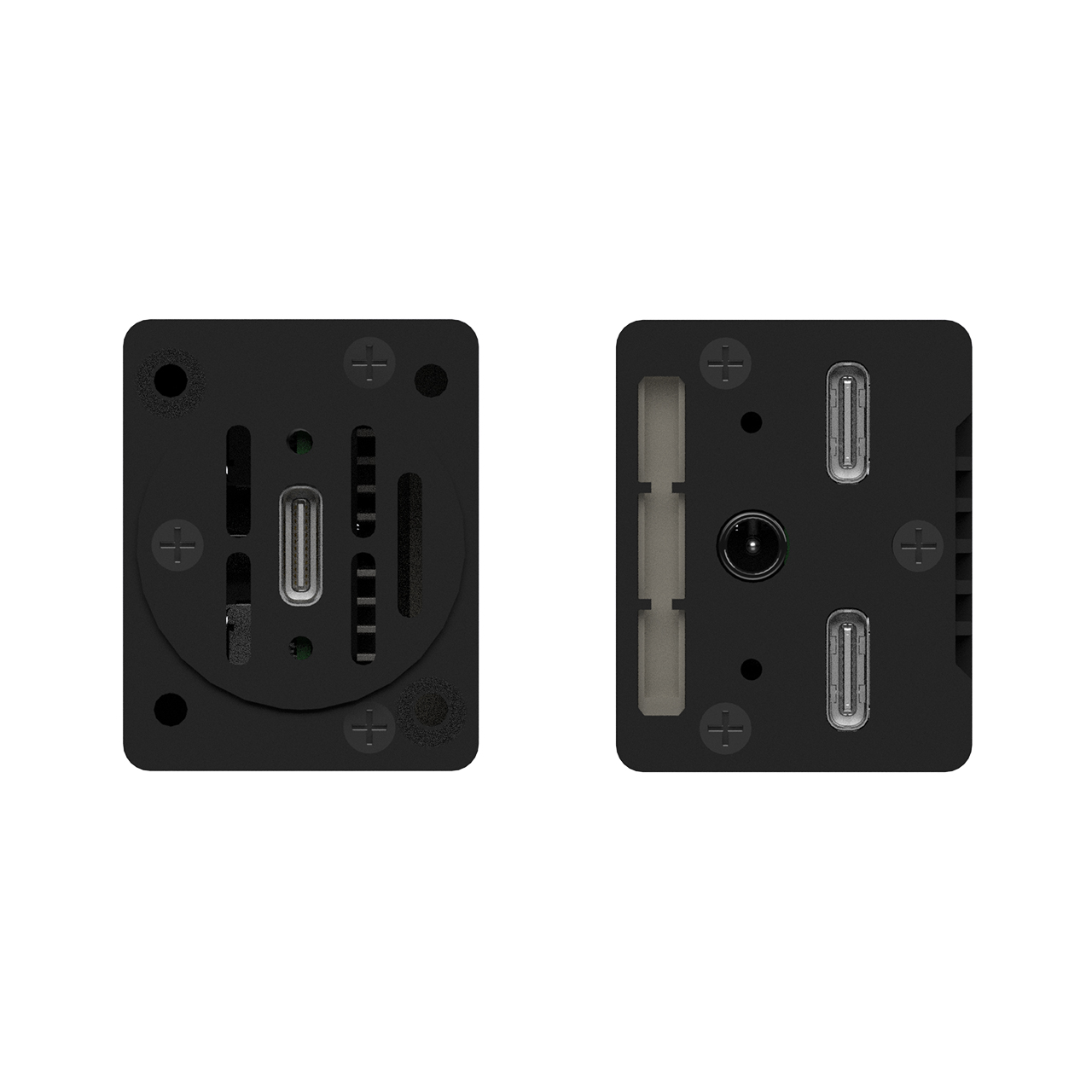

- Dual downstream USB4 ports: Two full-feature USB4 Type-C device ports.
- 40Gbps USB4 + Thunderbolt compatible: Supports up to 40Gbps USB4 with Thunderbolt compatibility.
- Backward compatible: Supports USB 3.2 Gen 2x2/Gen 2x1/Gen 1 and USB 2.0/1.1.
- DisplayPort 2.1 support: DP Alt Mode support with automatic 2-lane/4-lane switching.
- Integrated PCIe switch: Supports PCIe tunneling for maximum USB4 bandwidth.
- Up to 60W charging to host: Power delivery to charge the USB-C host device.
- Active re-timer: Ensures signal stability for reliable multi-cable USB-C setups.

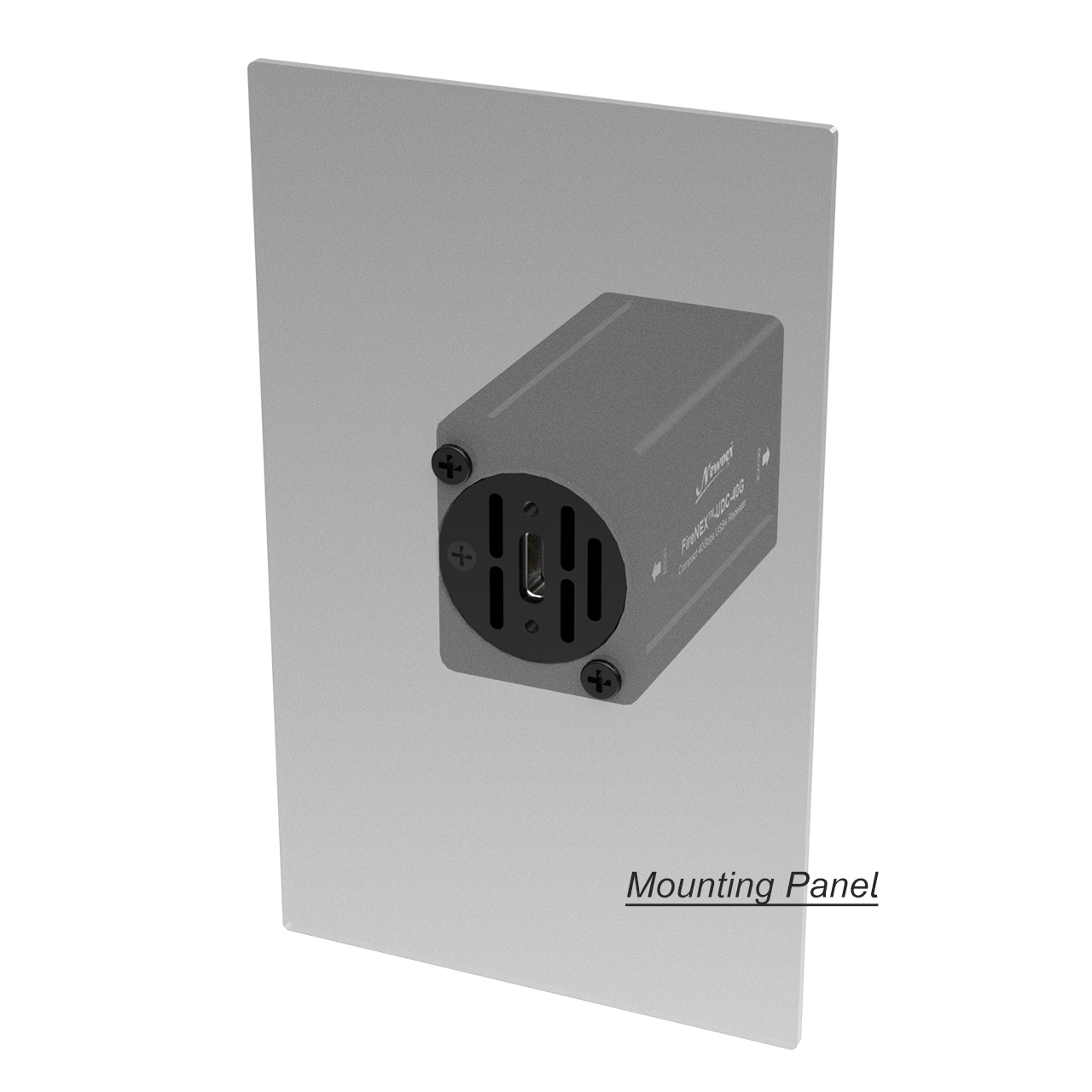

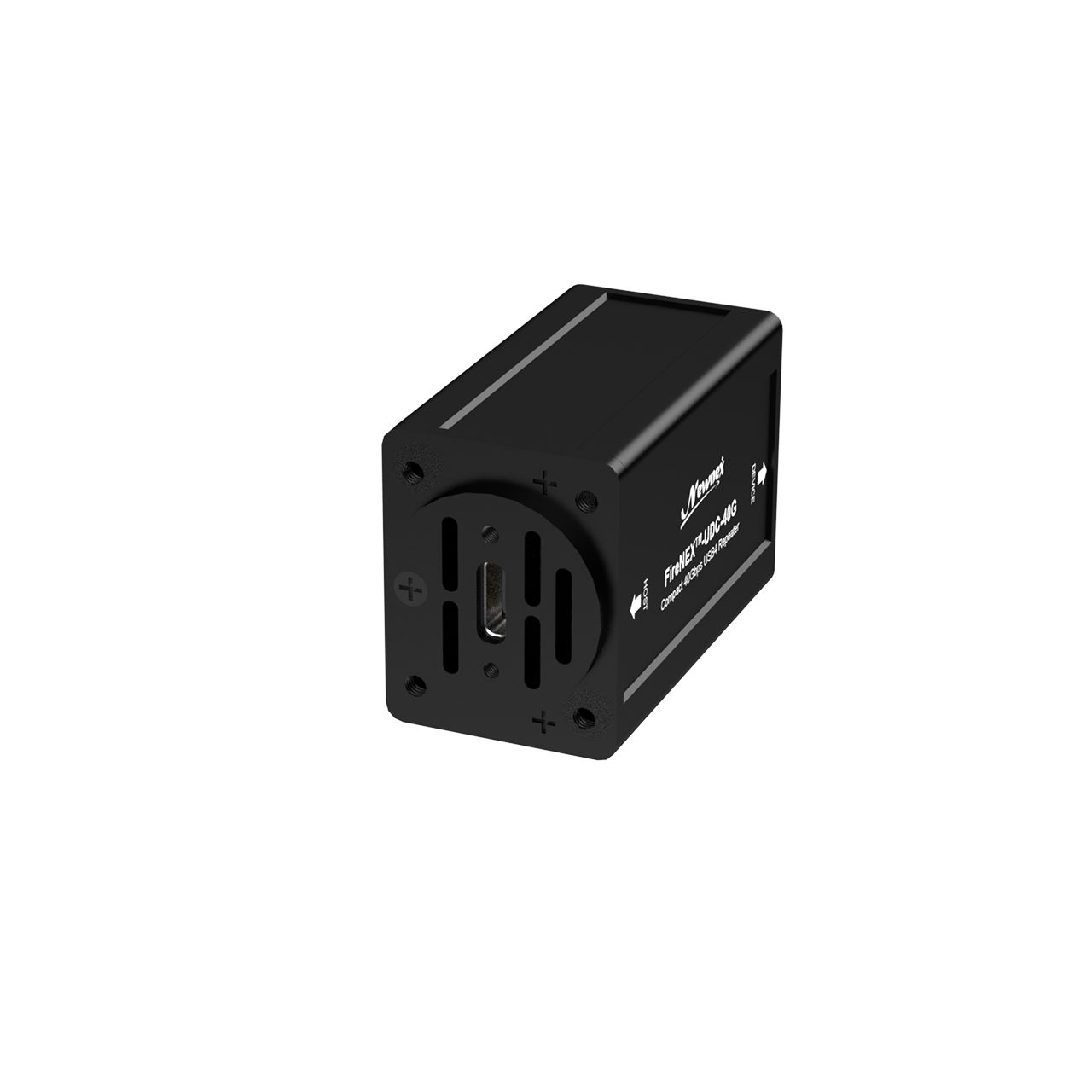

- Professional mounting: Includes Neutrik XLR D-Series bracket for AV/IT integration.
In the Box
- 1 × FireNEX™-UDC-40G
- 1 × USB4 Type-C Cable (1 m)
- 1 × 19V DC Power Adapter
- 2 × M3 Screws for Mounting
FAQ
Q: Does FireNEX™-UDC-40G contain any USB hub?
A: Yes. FireNEX™-UDC-40G consists of one USB hub tier.
Q: Does FireNEX™-UDC-40G support DisplayPort (DP) Alt Mode?
A: Yes. FireNEX™-UDC-40G fully supports DP Alt Mode in both 2-lane and 4-lane configurations, with compatibility up to DP 2.1 and backward compatibility to DP 1.4 and DP 1.2.
Q: Does FireNEX™-UDC-40G support USB Power Delivery (PD)?
A: Yes. FireNEX™-UDC-40G supports USB PD voltage profiles of 5V, 9V, 15V, and 20V, delivering up to 60W charging to the connected USB host.
Q: Is FireNEX™-UDC-40G backward compatible with USB 2.0 or USB 3.x peripherals?
A: Yes. FireNEX™-UDC-40G is backward compatible with USB 2.0 and USB 3.x peripherals while maintaining proper signal integrity.
Q: Do the USB-C ports of FireNEX™-UDC-40G support reversible plug-in?
A: Yes. The USB-C connector is fully reversible and can be plugged in either orientation.
Q: What is the maximum cable length supported when using FireNEX™-UDC-40G?
A: FireNEX™-UDC-40G actively regenerates USB4/USB-C signals when joining two USB-C cables, enabling reliable USB4, USB 3.2, and DP Alt Mode performance where passive couplers may fail.
Tested Cable Length Results (with Newnex USB Cables):
| Host Side Cable | Max Length | Device Side Cable | Max Length |
|---|---|---|---|
| Passive USB4 40Gbps | 1m (3.3 ft.) | Passive USB4 40Gbps | 1m (3.3 ft.) |
| Active USB4 40Gbps | 4m (13.1 ft.) | Active USB4 40Gbps | 4m (13.1 ft.) |
| Passive USB4 20Gbps | 2m (6.6 ft.) | Passive USB4 20Gbps | 2m (6.7 ft.) |
| Active USB4 20Gbps | 6m (19.7 ft.) | Active USB4 20Gbps | 6m (19.7 ft.) |
| Passive USB 3.2 | 5m (16.4 ft.) | ||
| Active USB 3.2 | 15m (49.2 ft.) |
