Industrial USB3.0 Hub, 4-Port
FireNEX™-uHUB
5Gbps, USB 3.2 Gen 1 Hub with 4 Ports, Self-Powered

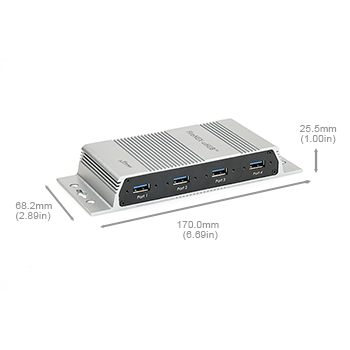

The Newnex FireNEX™-uHUB sets a new standard in industrial USB hub design as the first USB3 Vision-compliant hub. It features one upstream USB 3.0 Type-B port and four downstream USB 3.0 Type-A ports, all equipped with USB3 Vision Standard-compliant locking mechanisms for secure and reliable connections.
Engineered for demanding environments, the FireNEX™-uHUB is fully self-powered through a 12V AC/DC adapter and includes a 2-pin DC power terminal that supports a wide input voltage range of 10V to 40V, making it ideal for diverse industrial setups.
Built with a rugged metal enclosure, the FireNEX™-uHUB offers superior durability to withstand harsh conditions. Additionally, it is designed with a metal bracket for flexible wall or rail mounting, ensuring easy and secure installation in any workspace.
The FireNEX™-uHUB is USB-IF certified, having undergone rigorous compliance testing to ensure it meets all USB standard requirements. This certification guarantees exceptional compatibility, performance, and reliability in both industrial and professional applications.
Key Features
- Full SuperSpeed USB 3.0 at 5 Gbps
- Backward compatible with USB 2.0
- USB3 Vision Compliant Locking Port
- Self-powered hub, turning off external power also powers off all downstream USB ports.
- Surface mount ready
- 12-24V industrial DC power input available
- Plug and Play for Windows, Mac and Linux OS
- Metal enclosure for industrial level durability and EMI protection
- USB-IF certified
In the Box
- 1x FireNEX™-uHUB
- 1x USB A to B Cable, 1m
- 1x 12V DC Power Adapter
- 1x Quick Start Guide
Specifications
Optional Accessories
Helpful Links
FAQ
Q: What does “self-powered” mean for the FireNEX™-uHUB?
A: The FireNEX™-uHUB receives its downstream power entirely from an external power supply rather than from the host computer. When the external power supply is turned off, the hub and all downstream USB ports also lose power, even if the upstream USB cable remains connected. This allows connected bus-powered devices, such as USB cameras, to be turned off or power-cycled using an external power controller.
Q: What is the maximum speed of the FireNEX™-uHUB?
A: The maximum speed of FireNEX™-uHUB is 5 Gbps as specified by the USB 3.0 standard.
Q: Is the FireNEX™-uHUB USB3 Vision Compliant and RoHS Compliant?
A: Yes, the FireNEX™-uHUB is USB3 Vision Compliant and RoHS Compliant. FireNEX™-uHUB Rohs Certifcation can be found in Newnex's FireNEX™ Repeaters Certifcate.
Q: Is the FireNEX™-uHUB covered with warranty?
A: Yes, the FireNEX™-uHUB is covered with one-year manufacturer warranty.
Q: Is the FireNEX™-uHUB backward compatible with USB 1.1 and USB 2.0?
A: Yes, the FireNEX™-uHUB is backward compatible with USB 1.1 and USB 2.0.
Installation Setup
