USB-C Repeater over CAT 6/7 with 4K Display
FireNEX™-CAT6-DP | 5Gbps USB 3.2 | 4K Video | 60W PD | Ethernet
Overview

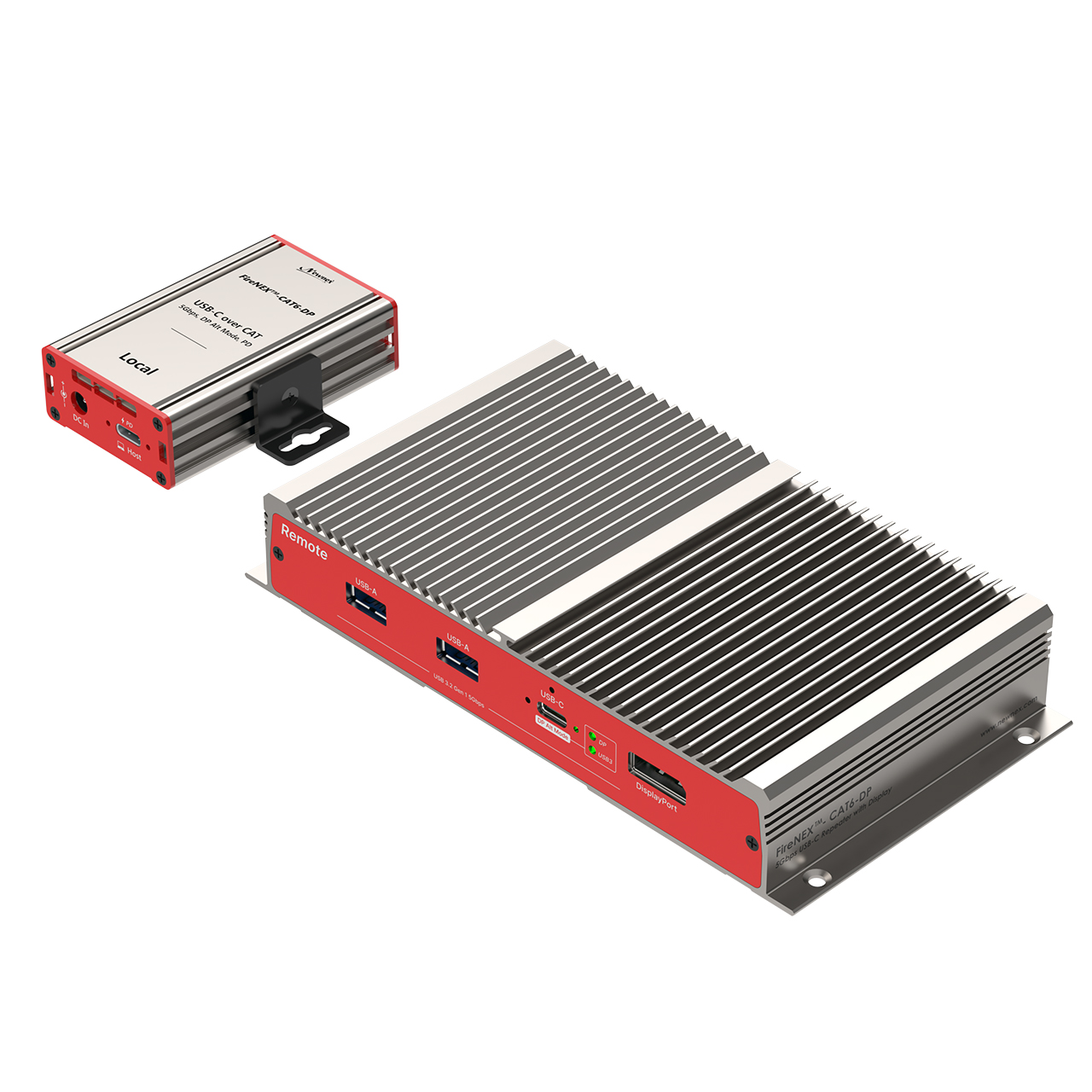

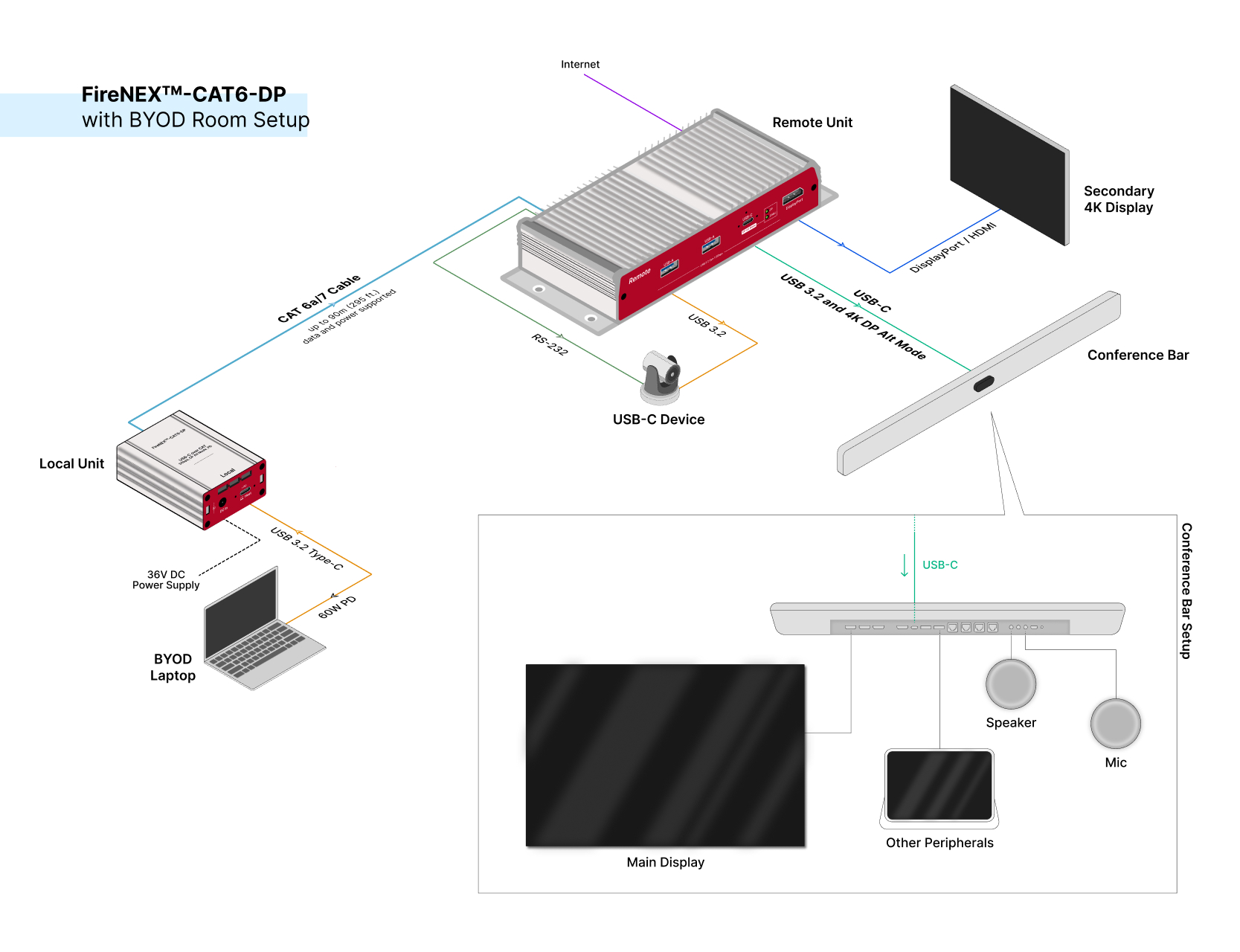

The FireNEX™-CAT6-DP is the all-in-one USB-C system that delivers 5Gbps USB 3.2 data, 4K display video, audio, Gigabit Ethernet, and 60W PD charging—all over a single CAT 6a/7 cable up to 90 m (300 ft). Designed with BYOD meeting room setting, it simplifies connections for video bars, interactive displays, and collaboration systems, reducing cabling and installation costs.
What Makes It Unique
Unlike other so-called BYOD extenders that only support USB 2.0 or only offer USB 3.0 data without DisplayPort (DP) alt mode, the FireNEX™-CAT6-DP is the world’s first BYOD extender that truly serves the purpose of BYOD via a complete set of USB-C features. It supports simultaneous 5Gbps data and 4K DisplayPort video, and its automatic DP Alt Mode lane switching ensures universal compatibility with USB-C devices that use either 2-lane or 4-lane configurations. The product also delivers robust USB Power Delivery (PD) up to 60W to host and 30W to device. In addition, it has a built-in Gigabit Ethernet port, so users get 4K DisplayPort video, audio, power, data, and network—everything with one single USB-C plug-in solution.
Key Features
In the Box
- 1x FireNEX-CAT6-DP Local Unit
- 1x FireNEX-CAT6-DP Remote Unit
- 1x 36V/100W DC Power Adapter (US)*
- 2x USB 3.2 C to C Cable, 2m
- 1x FireNEX-CAT6-DP User Guide
- 2x RS-232 Headers
*International users need to switch the AC power cord
Specifications
1x USB-C (DP Alt Mode, USB 3.2 5Gbps, PD)
USB-C: 5V, 9V, 12V, 20V up to 27W
*Total USB devices combined less than 27W
CAT 6a/7 cable
Note: UTP cable can be used, the range is tested up to 30m
Documents
Driver
Helpful links
Installation Setup
FAQ
Q: Does FireNEX™-CAT6-DP support DP Alt Mode?
A: Yes, FireNEX™-CAT6-DP supports USB-C DisplayPort Alt Mode and can extend video from compatible systems running Windows, macOS, ChromeOS, Ubuntu, and Android.
Q: Does FireNEX™-CAT6-DP support 2-lane or 4-lane DP Alt Mode?
A: Yes, the usb-c extender supports both 2-lane and 4-lane DP Alt Mode with automatic switching, intelligently detecting the capabilities of the connected device.
Q: How many USB hub tiers does FireNEX™-CAT6-DP consist of?
A: FireNEX™-CAT6-DP contains two USB hub tiers, users should be aware of the requirement of the maximum number of USB hub tiers allowed in the USB standard when using with a PC system and other devices
Q: Is FireNEX™-CAT6-DP backward compatible with USB 2.0 and USB 1.1 peripherals?
A: Yes, it supports USB 2.0 and USB 1.1 devices, such as keyboards, mice, and touchscreens, over the CAT cable.
Q: Does FireNEX™-CAT6-DP support isochronous USB data transfer?
A: Yes, it supports isochronous USB transfers, which are commonly used for real-time devices like webcams and audio interfaces.
Q: Are the USB-C ports of FireNEX™-CAT6-DP flippable?
A: Yes, both the upstream and downstream USB-C ports support reversible plug orientation (flippable insertion).
Q: Can I use any CAT5 or CAT6 unshielded ethernet cable for FireNEX™-CAT6-DP?
A: While you can use unshielded twisted pair (UTP) CAT6a, we recommend using shielded (S/FTP) CAT6a or CAT7 cable for optimal performance. Using a UTP cable may reduce range and increase the risk of signal interruptions in environments with electromagnetic interference (EMI).
Q: Does FireNEX™-CAT6-DP require any drivers?
A: Yes, the FireNEX™-CAT6-DP needs a driver to function properly. On Windows, the driver is typically downloaded and installed automatically. For further driver information, please refer to the user guide or contact us.
Q: Does FireNEX™-CAT6-DP support HDCP (High-bandwidth Digital Content Protection)?
A: Yes, the FireNEX™-CAT6-DP supports HDCP 2.2, allowing it to transmit protected 4K content from compatible source devices to displays. This ensures compatibility with streaming services and media players that require HDCP 2.2 for 4K UHD video playback.
