Custom Cable Design Tool

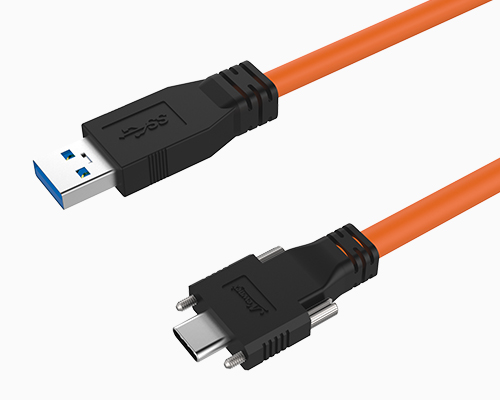

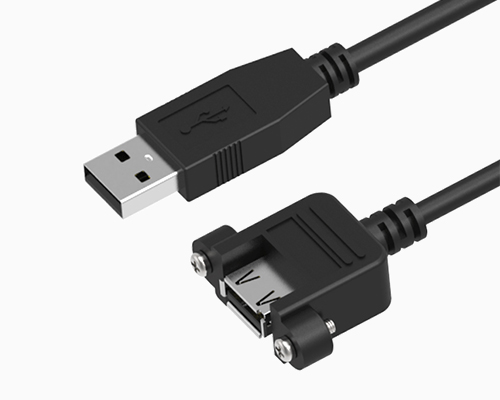

Newnex's Custom Cable Design Tool is ideal for creating custom cable assemblies for your special needs. Our automated, interactive and user-friendly cable design tool is capable for incorporating different types of connectors such as USB (USB 2.0, USB 3.0, and USB 3.1 Type C), 1394 FireWire, and Gigabit Ethernet for Machine Vision and features various connector configurations (male plugs, female receptacles, angled, panel mount and screw locking etc.). Additionally, this dynamic design tool also satisfies your needs with many choices of custom length, custom wire AWG, high flex robotic life cable, ferrite core, labels, crimp connectors (Molex, JST, etc.) and other sorts of cable finishes.

Custom Cable FAQ:

• Length of the cable is measured from tip to tip
• Lead time of custom cable with existing connectors and raw cables is from 4-6 weeks
• Lead time for custom cable with new connector design is from 6-8 weeks
• Cable construction, wiring, locking connectors are following corresponding USB-IF, FireWire, USB3 Vision, GigE Vison specifications, unless specified otherwise. Click to read more about the Technology
• Cables are RoHS and REACH compliant. Read more on compliance
